Single point of control
Distributes water supply, vacuum lines and power to all sanitation units such as toilets, urinals and hand basins.
Single point of discharge
Collects wastewater and discharges it up to 200 m away into the public sewer network or a tank outside the event perimeter.
category 5 protection
Built-in category 5 backflow protection allows units to be connected to any water source anywhere in the world.
User friendly design

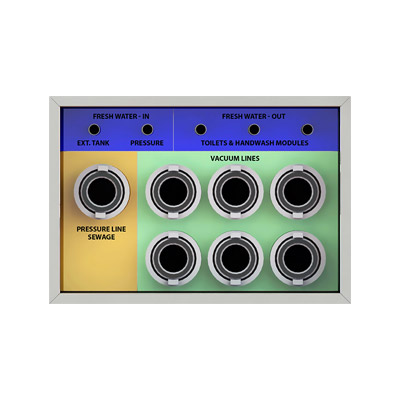

Connects to other units via colored couplings to make setting up quick and easy even with no prior experience.
Small yet powerful
A single pump station (large) can power 80 toilets, each with 35-40 visits/hour for a total of around 3,000 flushes/hour.
Our high capacity toilets utilize the latest technology to provide an excellent user experience while being capable of handling a large number of visits per hour. The unique vacuum system means that guests never have to wait for toilets to refill before flushing. Because toilets use air instead of water to transport sewage the amount of water needed is reduced by up to 90%. All units are connected via a simple plug & play set up saving precious time while allowing for a more flexible layout. A central pump station provides water supply, vacuum lines and power to all units meaning that wastewater from all toilets is collected at one common point.
The World's most advanced vacuum generator for sanitary systems

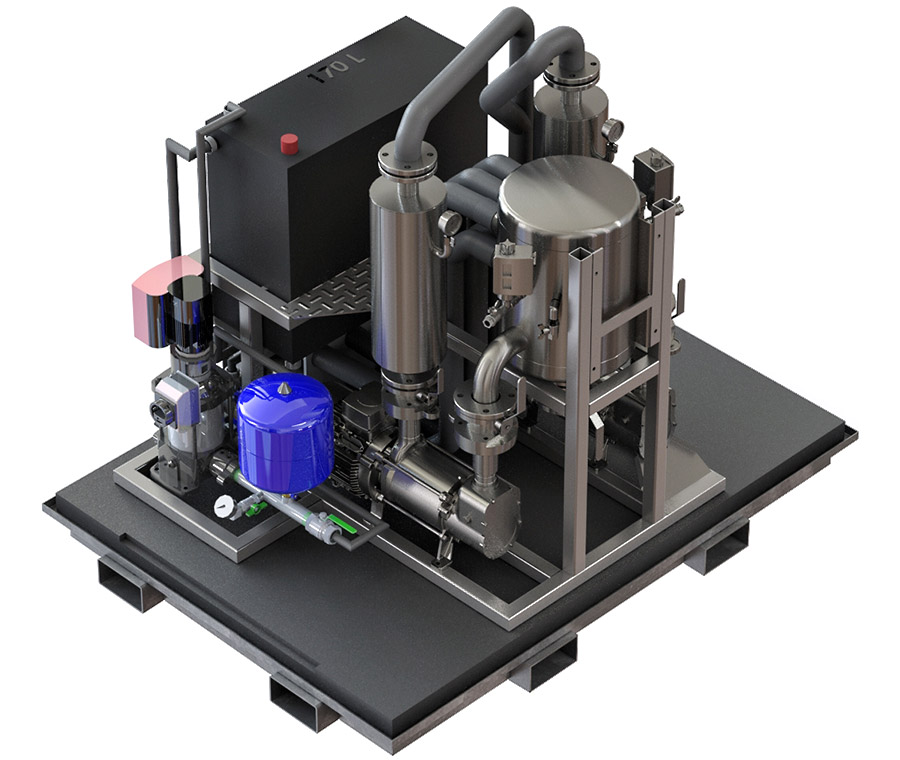

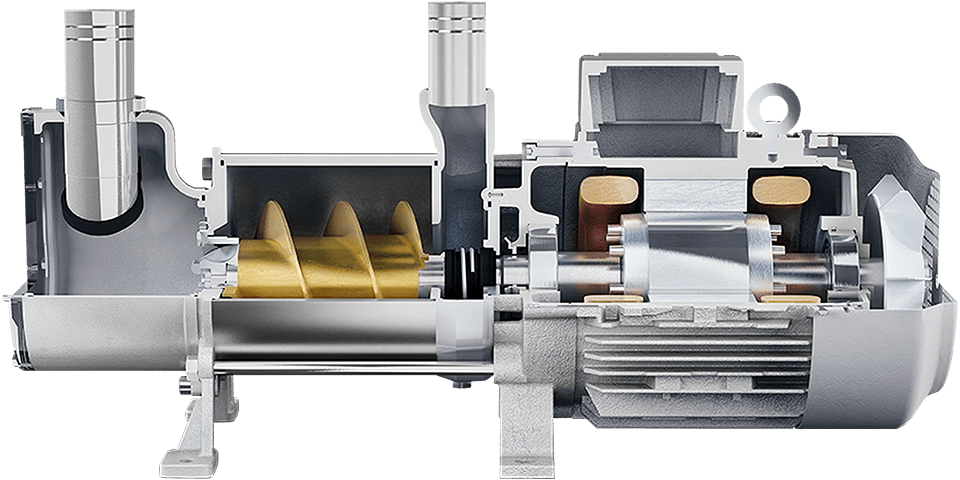

The pump station features the unique Vacuumarator™ pump from Jets™. It creates vacuum, macerates sewage and discharges in one single-pass operation. The vacuumarator™ pump is the most compact and reliable vacuum generator available for sanitary systems. It is highly efficient in transporting any combination of black and grey water under vacuum. Learn more at Jetsgroup.com.
Please note: The numbers below represent theoretical values based on simulations and empirical testing for a large pump station. The actual capacity will vary with different events where usage patterns can differ greatly. Please refer to our configuration guidelines for more information.
Image copyright: Jets Vacuum AS

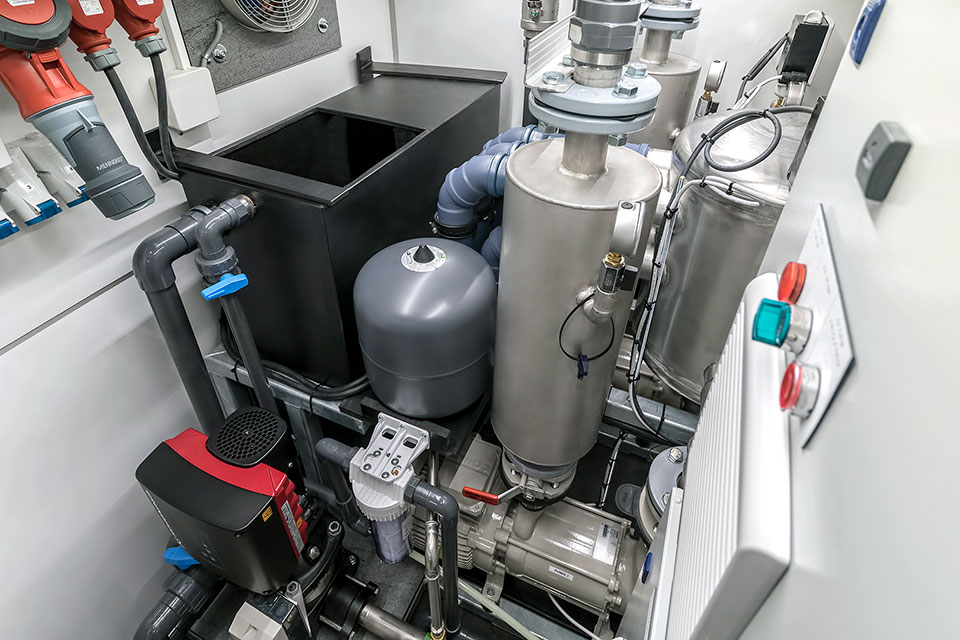

connection hub

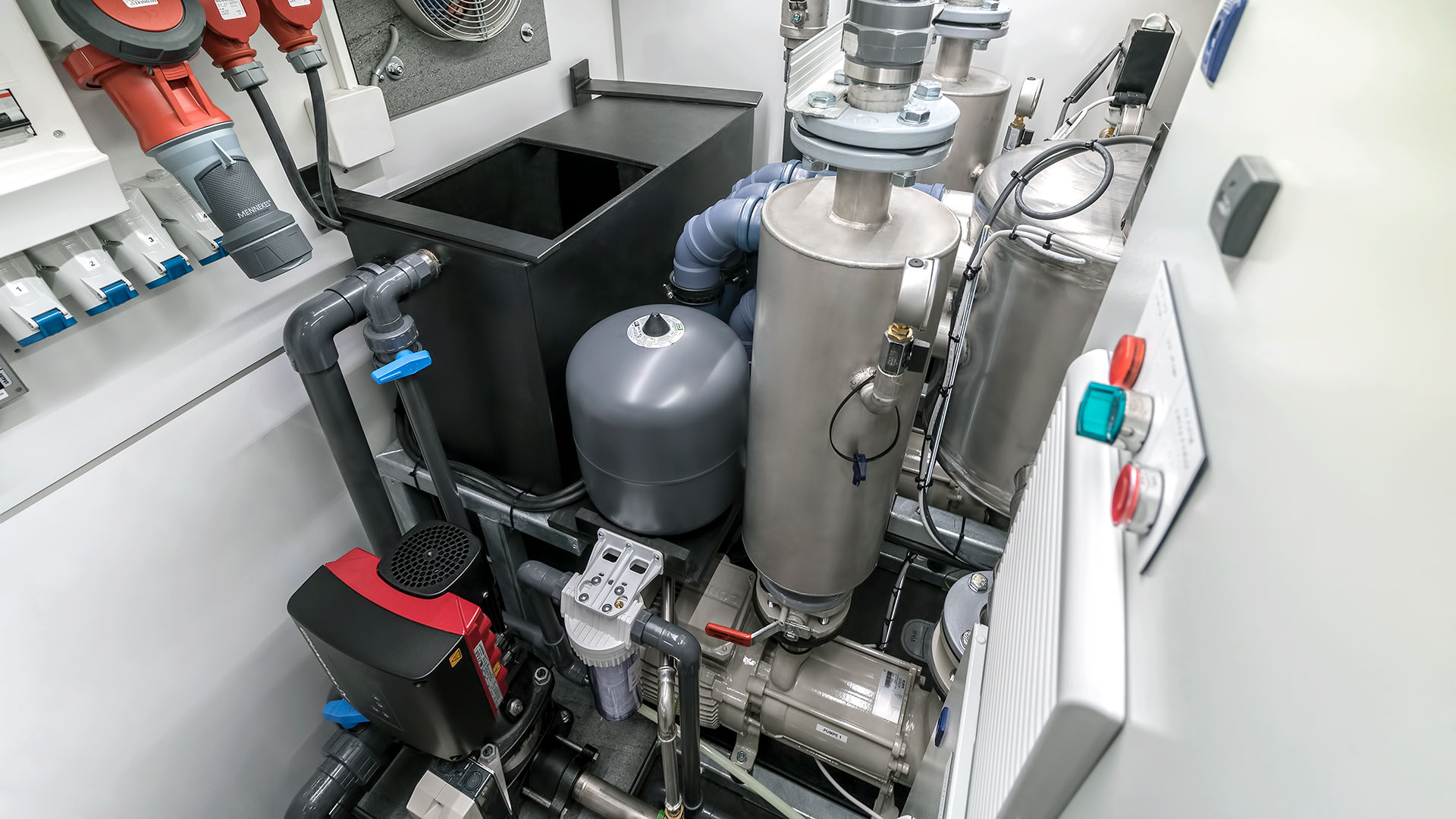

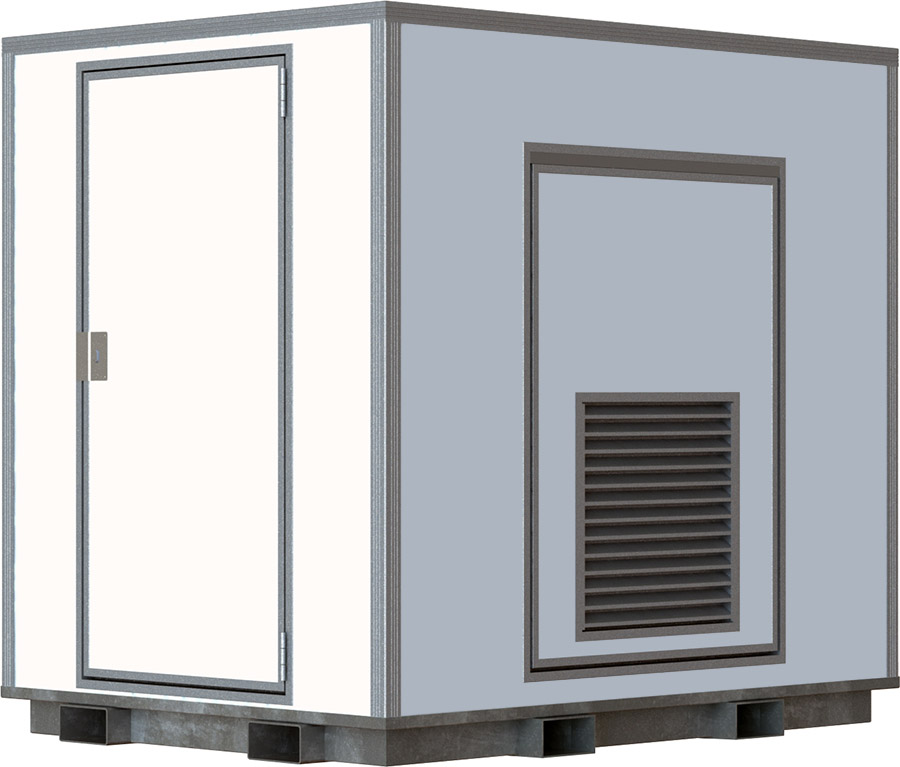

The pump station works like a connection hub between all sanitation units. It distributes water supply, vacuum lines and power. Having all electrical installations in a single unit reduces the need for service and maintenance. It connects to other units via colored couplings.
cat 5 protection
The pump station comes fully equipped with category 5 backflow protection. It utilizes a valve combined with a 50/170 L break tank to achieve this. Because of this it can be connected to any water source anywhere in the world including locations with strict water regulations.

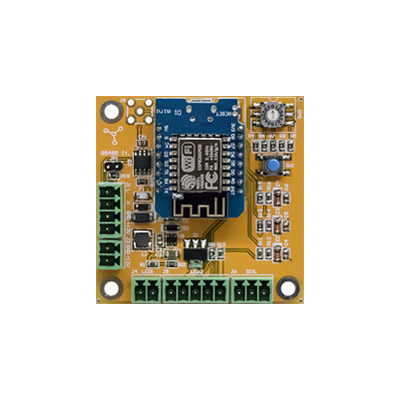

IOT controller
The pump station has built-in sensors capable of sending and receiving data. We are currently developing software that allows you to take full advantage of this technology giving you and your team the best experience while maximizing productivity. Read more.
With pump stations all service points, discharge stations and/or tanker truck pickup points can be located in a dedicated area outside the festival perimeter. The crowd will never see, hear or smell them.
This approach completely eliminates the need for pump-out trucks to maneuver through crowds, keeps visitors away from unwanted sights and ensures uninterrupted operation for the whole event.
"The toilet system is more important than the sound system" - Sweden Rock.
EventCubes were developed using the expertise we have gathered from over 20 years of supplying high end trailers and cabins for the construction and event industry. We use premium components and materials to ensure that our products are exceedingly reliable with an exceptionally long lifetime. As the Nordics' leading manufacturer, we are able to put some of the best products on the market direct from suppliers. A direct relationship with our suppliers means that we can work closely with them to develop parts that optimize functionality, design and durability.

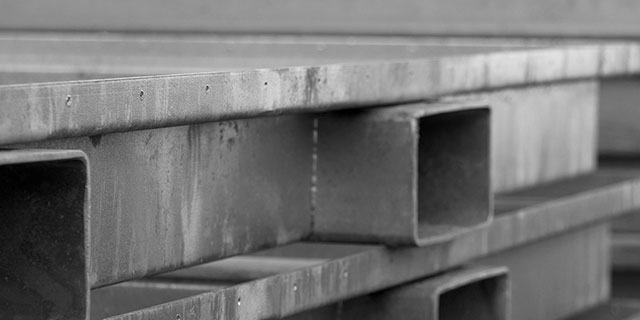

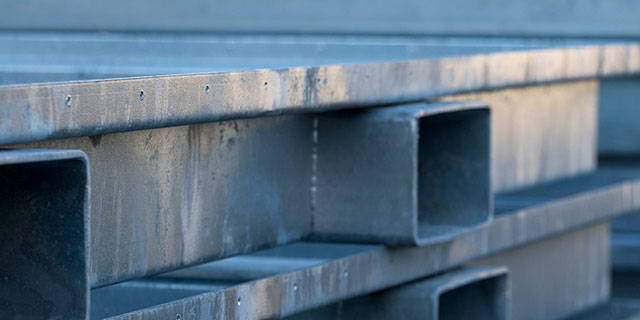

Heat galvanized steel chassis with pockets

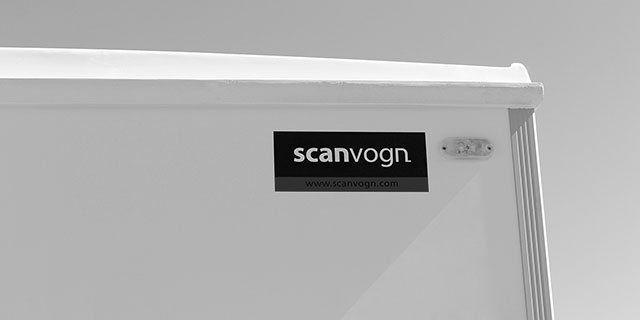

Solid cast curved roof with water drainage

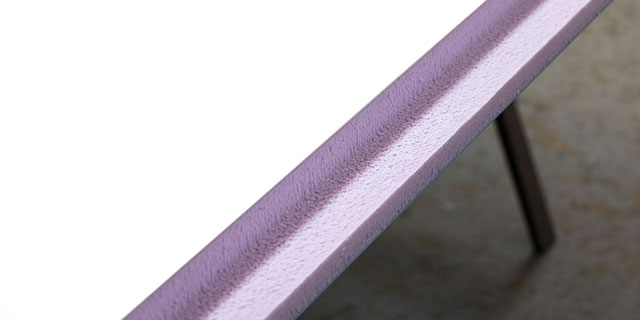

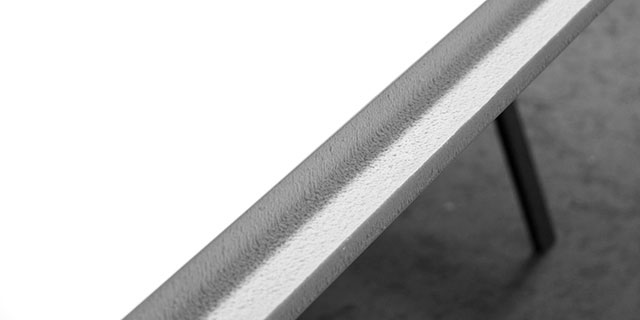

Premium fiberglass panels with XPS foam

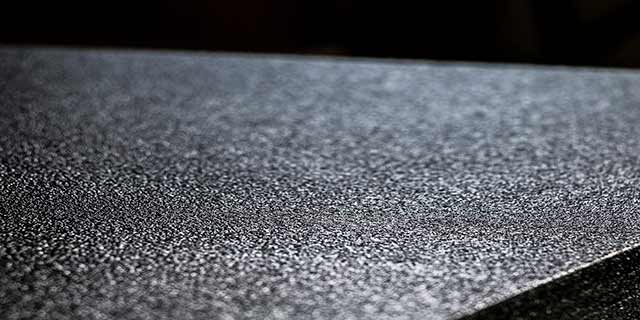

High performance polyurea floor coating

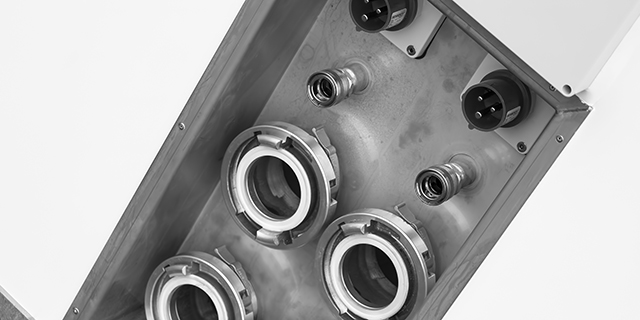

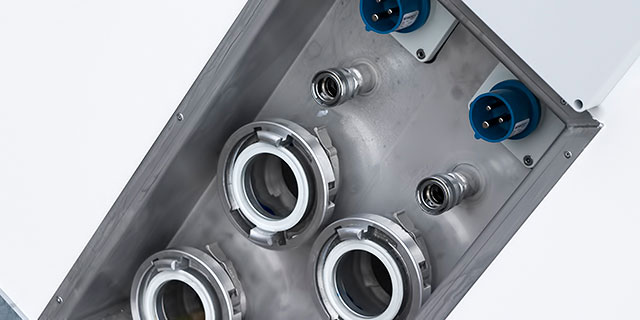

Stainless steel couplings and door handles
Inorganic materials prevent degradation
internal steel frame holding toilets

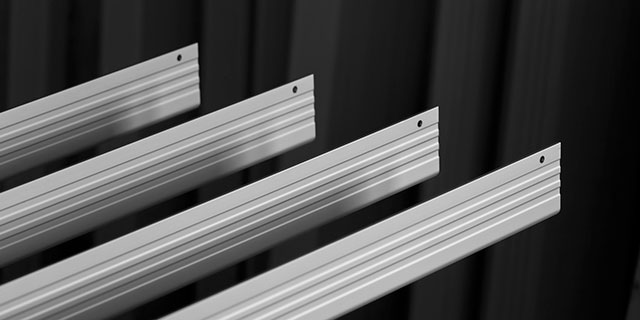

sturdy anodized aluminum profiles

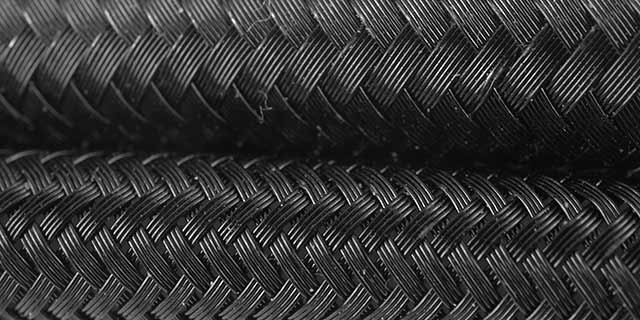

Vacuum lines reinforced with steel
Heat galvanized steel chassis with pockets
Heat galvanized steel
chassis with pockets
SOLID CAST CURVED ROOF
WITH WATER DRAINAGE
Solid cast curved roof with water drainage
Premium fiberglass panels with XPS foam
PREMIUM fiberglass PANELS
WITH XPS FOAM
HIGH PERFORMANCE POLYUREA
FLOOR COATING
High performance polyurea floor coating
Stainless steel couplings and door handles
STAINLESS STEEL COUPLINGS
AND DOOR HANDLES
INORGANIC MATERIALS
PREVENT DEGRADATION
Inorganic materials prevent degradation
internal steel frame holding toilets
Internal steel frame
holding toilets
Sturdy anodized
aluminum profiles
sturdy anodized aluminum profiles
Vacuum lines reinforced with steel
Vacuum lines
reinforced with steel
Heat galvanized steel chassis with pockets
Heat galvanized steel chassis with pockets
Solid cast curved roof with water drainage
SOLID CAST CURVED ROOF WITH WATER DRAINAGE
Premium fiberglass panels with XPS foam
PREMIUM fiberglass PANELS WITH XPS FOAM
High performance polyurea floor coating
HIGH PERFORMANCE POLYUREA FLOOR COATING
Stainless steel couplings and door handles
STAINLESS STEEL COUPLINGS AND DOOR HANDLES
Inorganic materials prevent degradation
INORGANIC MATERIALS PREVENT DEGRADATION
internal steel frame holding toilets
Internal steel
frame holding toilets
sturdy anodized aluminum profiles
Sturdy anodized
aluminum profiles
Vacuum lines reinforced with steel
Vacuum lines reinforced
with steel
? x ? cm (external), 300 kg
8-16 toilets, 320-640 flushes/h
MB45 / 50 l
8 x paper dispensers, 8 x bag clips, 8 x door sensors, 8 x water sensors
Ambient LED backlight, LED lights along roof
2 x 230 V CEE inlet, 2 x 230 V CEE outlet
2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet
4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX
One-piece molded roof with an even bend for optimal strength and water drainage
XPS insulated composite box with premium fiberglass cladding
Ultra-abrasion resistant polyurea anti-slip coating
Heat galvanized steel frame with forklift pockets on all sides
120 x 230 cm (external), 1500 kg
40-45 toilets, 1,600-1,800 flushes/h
200 L
6 x paper dispensers, 6 x bag clips, 6 x door sensors, 6 x water sensors
Ambient LED backlight, LED lights along roof (IP67)
2 x 230 V CEE inlet, 2 x 230 V CEE outlet
2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet
4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX
XPS insulated composite box with premium fiberglass cladding
Ultra-abrasion resistant polyurea anti-slip coating
One-piece molded roof with an even bend for optimal strength and water drainage
Heat galvanized steel frame with forklift pockets on all sides
120 x 230 cm (external), 1800 kg
64 toilets, 2,560 flushes/h
200 L
8 x paper dispensers, 8 x bag clips, 8 x door sensors, 8 x water sensors
Ambient LED backlight, LED lights along roof (IP67)
2 x 230 V CEE inlet, 2 x 230 V CEE outlet
2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet
4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX
XPS insulated composite box with premium fiberglass cladding
Ultra-abrasion resistant polyurea anti-slip coating
One-piece molded roof with an even bend for optimal strength and water drainage
Heat galvanized steel frame with forklift pockets on all sides
Capacity
Vacuum pump
Cleaning hose
Sewage pressure line
Lighting
IOT controller
Electric switchboard
Voltage
Fuse
Max power consumption
Nominal internal power consumption
Power in
Power out
Max power - Out 4 (230V)
Frame
Floor
Walls
Roof
Dimensions
Weight
Max power - Out 3 (230V)
Max power - Out 2 (230V)
Max power - Out 1 (230V)
Main vacuum line
Water out
Water in
Category 5 valve
Break tank
Water pump
Variant
8-16 toilets
1 x MB45
0
1 x 3' storz-B
Bright LED
1
Small
16A
3,680W
TBA
CEE - 230V 16A
2 X CEE 230V 16A
300 kg
Heat galvanized steel frame with forklift pockets on all sides
Scratch resistant polyurea anti-slip coating
XPS insulation with premium fiberglass cladding and anodized aluminum profiles.
XPS insulation with premium fiberglass cladding and anodized aluminum profiles.
TBA
TBA
TBA
TBA
TBA
230V
2 x 3' storz-B
2 x 3/4' camlock
1 x 1' camlock
1
50 L
40 L/m, 10 bar
Small
Medium
35-40 toilets
200 L/m, 3.5 bar
170 L
1
1
4 x 3/4' camlock
6 x 3' storz-B
1 x 3' storz-B
Bright LED
1
Large
400V
32A
38,400W
19,200W
CEE - 400V 32A
4 X CEE 230V 16A
2,300W
1,380W
1500 kg
150 x 200 x 200 cm
1,380W
2,300W
1 x 1' camlock
1 x MB95
80 toilets
2 x MB95
200 L/m, 3.5 bar
170 L
1
1 x 1' camlock
4 x 3/4' camlock
Bright LED
Large
75,600W
CEE - 400V 63A
4 X CEE 230V 16A
3,680W
3,680W
1800 kg
150 x 200 x 200 cm
2,990W
2,990W
31,200W
63A
400V
1
1 x 3' storz-B
6 x 3' storz-B
1
Large
Disclaimer: We are constantly seeking to improve our products and services and as a result all specifications are subject to change.
